The “Aeris” minimal sliding system is the ultimate choice for luxury residences, offering an elegant solution for expansive openings with sleek, minimal aluminum profiles. Designed to create breathtaking, uninterrupted views, this system combines the beauty of large glazing surfaces with exceptional performance and refined functionality—perfectly complementing the most sophisticated architectural styles.
• Ultra-minimal 1” interlock for uninterrupted views
• Fully concealed frame for a seamless architectural finish

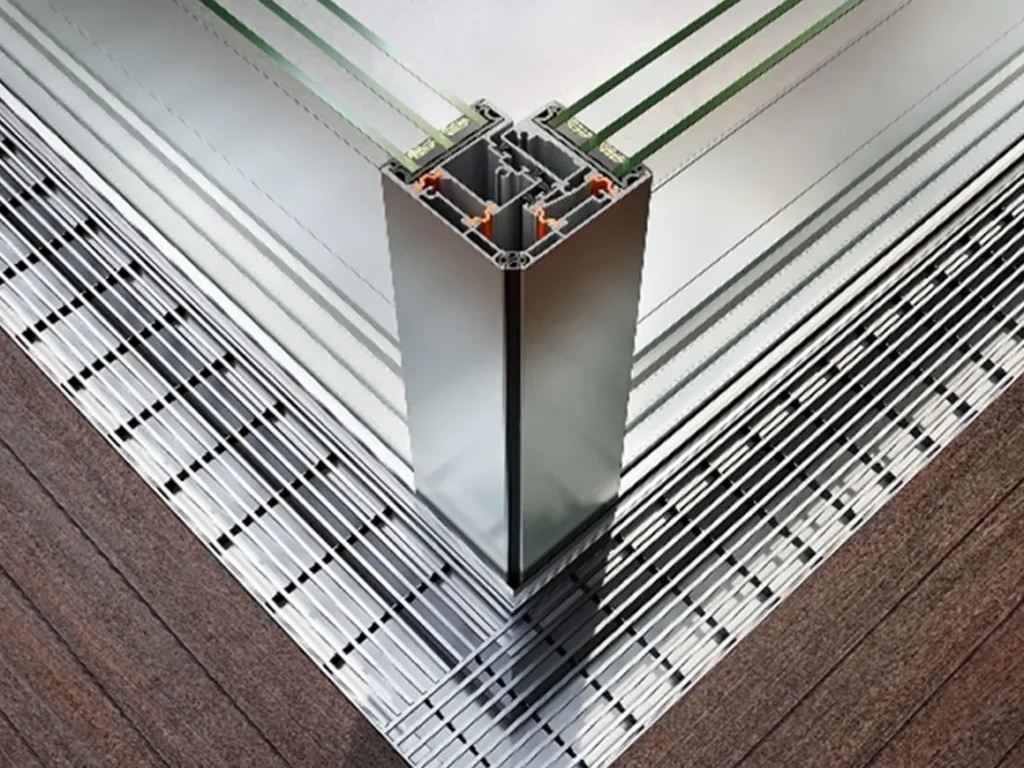

• Postless 90° Corner configurations
• Single-pocket, double-pocket, and multi-pocket solutions
• Curved sliding door configurations available
• 10-track configurations and panel heights up to 18 ft
• Concealed in-track motorization and external automation compatibility
• Integrated sliding and retractable screen options
• Integrated Juliette balcony railing option

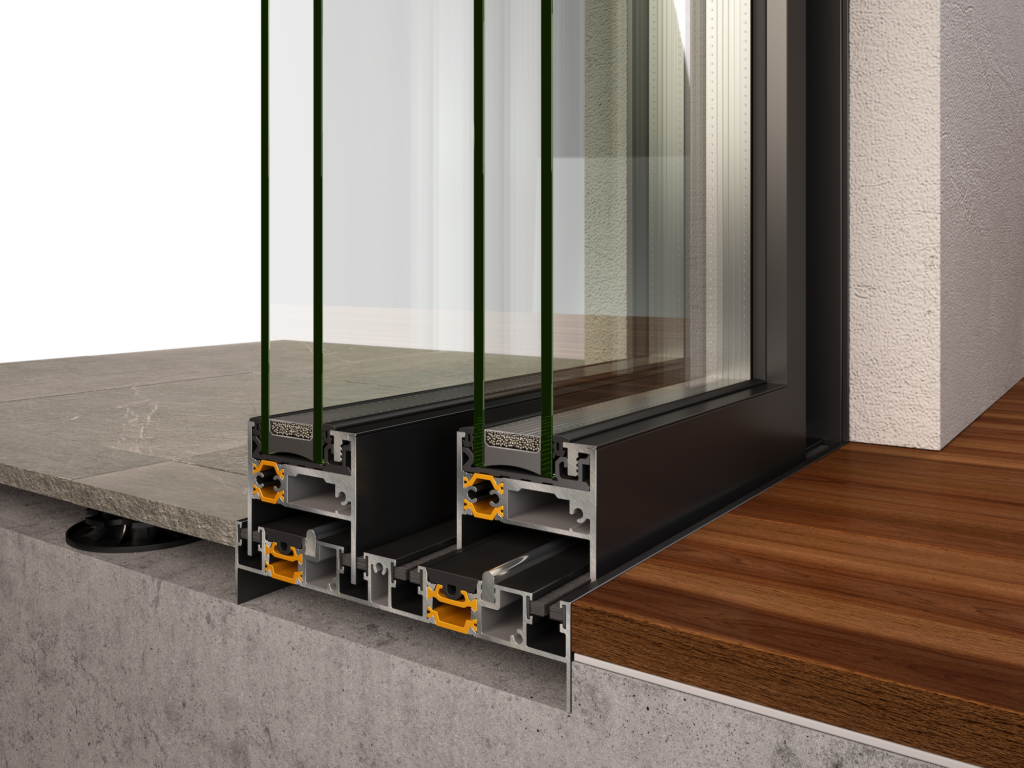

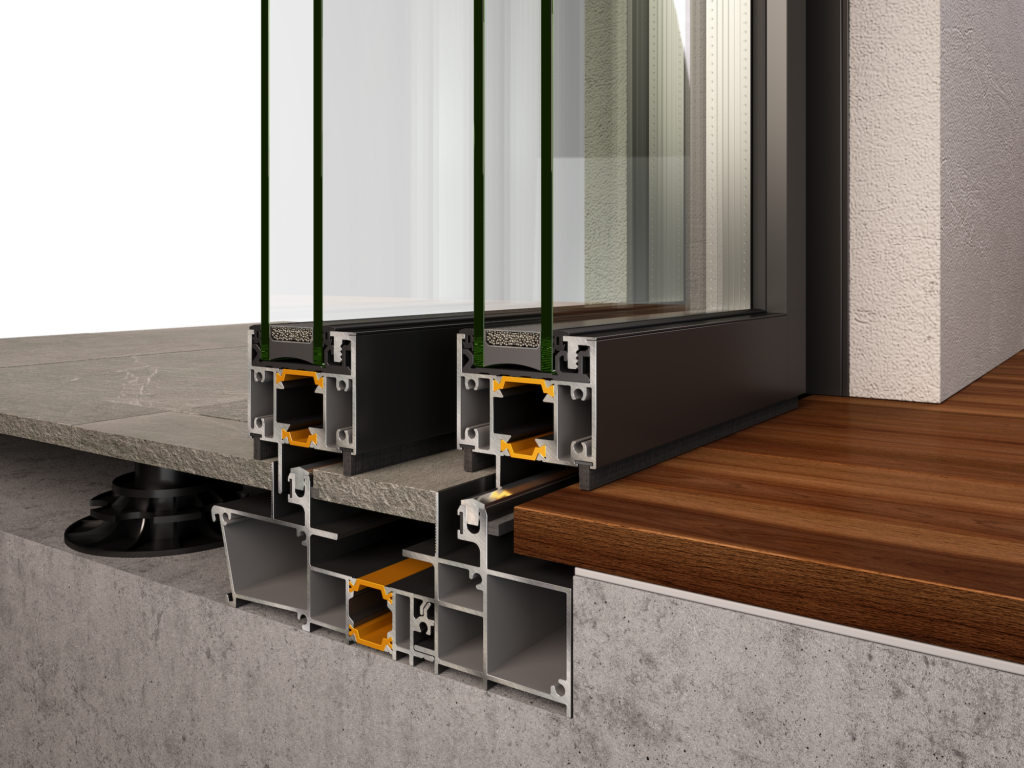

• Flush, low-profile, and fully recessed sill options with optional integrated drainage
• Smooth, textured, metallic, anodized, and brushed anodized finishes available
• XX, OX, OXXO, XXO, XXXO, OXXXXO, XXXX, XXXXX and multi-track layouts
• Single Pocket, double pocket, and multi-pocket doors
• 90° corner and open-corner configurations
• Panel weights up to 2,200 lbs per sash
• Configurations with up to 10 tracks
• Panel heights up to 18 ft
• Double and triple glazing compatibility up to 1 ¾” thick
• Concealed in-track motorization and external automation compatibility
• Stainless steel rollers and rails for smooth long-term operation
• Compatible with oversized insulated and laminated glazing assemblies
• Polyamide thermal break profiles for enhanced thermal performance
| METRIC | VALUE |
Air Infiltration | ≤ 0.3 cfm/ft² |
Water Penetration Resistance | Up to 8psf |
Structural Performance | DP50 |
Thermal Performance (U-Value) | As low as 0.29 (glazing dependent) |
